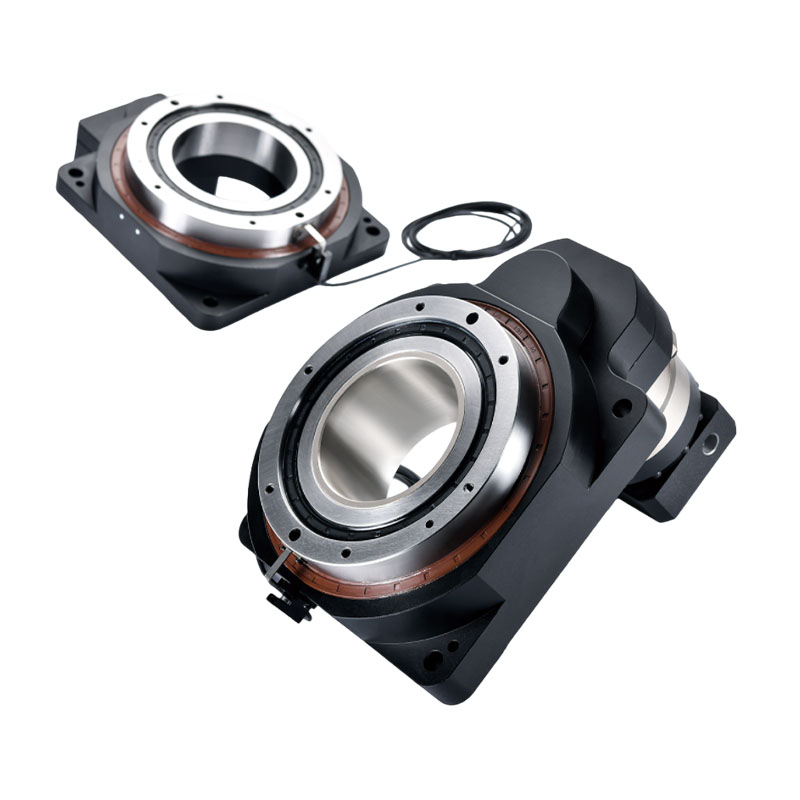

Heavy Duty Hollow Rotary Platform Gear Reducer
Bearing structure: Crossed roller bearing
Reduction ratio: 20/25/35/50/100/200/250/350/500
Positioning accuracy: ≤2 arc-min
Repeatability: ≤30 arc-sec
Send Inquiry
Product Description
In the vast landscape of industrial production, heavy-duty scenarios stand like towering mountains, posing extremely stringent challenges to transmission equipment. Traditional transmission solutions often fall short when faced with heavy loads and complex working conditions, making it difficult to meet the demands of efficient and stable production. Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer , with its unique design concept and outstanding performance, has become a well-deserved leader in transmission under heavy-duty working conditions, bringing brand-new solutions to numerous industries.
Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer features an ingenious gear design, which fundamentally improves the load-bearing capacity of the gears through the key measure of increasing the gear module. As a critical parameter for measuring the size and load-bearing capacity of gears, an increase in the gear module means greater tooth thickness and enhanced tooth root strength of the gears. This design advantage is fully demonstrated under heavy-duty working conditions.
Take the crushing equipment in large-scale mining machinery as an example. The crusher needs to withstand huge impact force and material pressure during operation, and the gears of traditional reducers are prone to problems such as tooth surface wear and tooth root fracture under such extreme working conditions, resulting in frequent equipment failures and high maintenance costs. Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer , with its increased gear module, can easily cope with these huge loads. When its gears bear heavy loads, the distribution of tooth surface contact stress is more uniform, and the tooth root strength is sufficient to resist impact force, which greatly improves the service life and reliability of the gears, ensures the long-term stable operation of the crusher, and provides a strong guarantee for mine production.
This gear reducer adopts an innovative design where the output shaft of the reducer is directly connected to the gear, and a bearing set is ingeniously arranged in the middle. This unique transmission structure significantly improves the rigidity and load-bearing capacity of the transmission system. The direct connection between the reducer output shaft and the gear reduces intermediate transmission links, lowers energy loss and transmission error, and enables more direct and efficient power transmission.
The bearing set arranged in the middle, like the "guardian" of the transmission system, effectively shares the radial and axial forces. Under heavy-duty working conditions, complex forces including radial and axial forces will be generated during equipment operation. If these forces are not properly shared, they will cause great damage to the transmission system and affect the normal operation of the equipment. The bearing set of Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer , through precise design and layout, can evenly share these forces and shorten the stressed force arm, thus realizing high-rigidity and high-torque transmission. Take a large port crane as an example. When lifting heavy objects, the reducer needs to withstand huge torque and radial force. The unique transmission structure of the reducer can ensure stable power transmission without slipping or jamming during the lifting process, which greatly improves the working efficiency and safety of the crane.
In heavy-duty working conditions, equipment often faces the situation of heavy load eccentricity, which will lead to an increase in overturning moment and pose a huge challenge to the stability and rigidity of the equipment. Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer is equipped with an anti-overturning stabilizing ring between the housing and the crossed roller bearing. This exquisite design provides a solid guarantee for the stable operation of the equipment under heavy load eccentricity conditions.
The anti-overturning stabilizing ring can enhance the overturning moment resistance and improve the rigidity of the equipment. When the equipment is in a heavy load eccentricity state, the stabilizing ring can effectively resist the overturning moment and prevent the equipment from tilting or shaking. Take a large CNC machine tool as an example. When processing large parts, the uneven weight distribution of the parts will lead to the eccentricity of the machine tool worktable. Without effective anti-overturning measures, the machine tool will vibrate during processing, which will affect the machining accuracy and surface quality. The anti-overturning stabilizing ring of Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer can ensure that the worktable remains stable even under heavy load eccentricity, providing a reliable guarantee for high-precision machining.
With its excellent performance, Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer is suitable for various working conditions including hoisting, side-mounting and conditions with large overturning force, becoming an all-round player in the heavy-duty field. Under hoisting working conditions, such as tower cranes on large construction sites, it is necessary to frequently lift and move heavy objects, which imposes extremely high requirements on the load capacity and stability of the reducer. The reducer can withstand huge lifting weight, ensure the stable operation of the crane during the lifting process, and avoid safety accidents caused by reducer failures.
In side-mounting working conditions, for example, the installation of some special industrial equipment requires the equipment to be mounted sideways and perform rotating operations. Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer can adapt to this special installation method, provide stable rotating power, and ensure the normal operation of the equipment after side mounting. In working conditions with large overturning force, such as the installation and maintenance of large-scale wind power generation equipment, the reducer needs to withstand huge overturning moment in harsh environments such as strong winds. The anti-overturning stabilizing ring and high-rigidity design of the reducer can ensure its reliable operation even under such extreme working conditions, providing strong support for the stable operation of wind power generation equipment.
With its increased gear module, unique transmission structure, anti-overturning stabilizing ring and wide working condition adaptability, Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer has become an ideal choice for transmission equipment under heavy-duty working conditions. In the future industrial development, it will continue to play an important role, promote technological progress in the heavy-duty field, and contribute to the production upgrading and efficiency improvement of various industries.
Take the crushing equipment in large-scale mining machinery as an example. The crusher needs to withstand huge impact force and material pressure during operation, and the gears of traditional reducers are prone to problems such as tooth surface wear and tooth root fracture under such extreme working conditions, resulting in frequent equipment failures and high maintenance costs. Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer , with its increased gear module, can easily cope with these huge loads. When its gears bear heavy loads, the distribution of tooth surface contact stress is more uniform, and the tooth root strength is sufficient to resist impact force, which greatly improves the service life and reliability of the gears, ensures the long-term stable operation of the crusher, and provides a strong guarantee for mine production.
This gear reducer adopts an innovative design where the output shaft of the reducer is directly connected to the gear, and a bearing set is ingeniously arranged in the middle. This unique transmission structure significantly improves the rigidity and load-bearing capacity of the transmission system. The direct connection between the reducer output shaft and the gear reduces intermediate transmission links, lowers energy loss and transmission error, and enables more direct and efficient power transmission.
The bearing set arranged in the middle, like the "guardian" of the transmission system, effectively shares the radial and axial forces. Under heavy-duty working conditions, complex forces including radial and axial forces will be generated during equipment operation. If these forces are not properly shared, they will cause great damage to the transmission system and affect the normal operation of the equipment. The bearing set of Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer , through precise design and layout, can evenly share these forces and shorten the stressed force arm, thus realizing high-rigidity and high-torque transmission. Take a large port crane as an example. When lifting heavy objects, the reducer needs to withstand huge torque and radial force. The unique transmission structure of the reducer can ensure stable power transmission without slipping or jamming during the lifting process, which greatly improves the working efficiency and safety of the crane.
In heavy-duty working conditions, equipment often faces the situation of heavy load eccentricity, which will lead to an increase in overturning moment and pose a huge challenge to the stability and rigidity of the equipment. Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer is equipped with an anti-overturning stabilizing ring between the housing and the crossed roller bearing. This exquisite design provides a solid guarantee for the stable operation of the equipment under heavy load eccentricity conditions.
The anti-overturning stabilizing ring can enhance the overturning moment resistance and improve the rigidity of the equipment. When the equipment is in a heavy load eccentricity state, the stabilizing ring can effectively resist the overturning moment and prevent the equipment from tilting or shaking. Take a large CNC machine tool as an example. When processing large parts, the uneven weight distribution of the parts will lead to the eccentricity of the machine tool worktable. Without effective anti-overturning measures, the machine tool will vibrate during processing, which will affect the machining accuracy and surface quality. The anti-overturning stabilizing ring of Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer can ensure that the worktable remains stable even under heavy load eccentricity, providing a reliable guarantee for high-precision machining.
With its excellent performance, Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer is suitable for various working conditions including hoisting, side-mounting and conditions with large overturning force, becoming an all-round player in the heavy-duty field. Under hoisting working conditions, such as tower cranes on large construction sites, it is necessary to frequently lift and move heavy objects, which imposes extremely high requirements on the load capacity and stability of the reducer. The reducer can withstand huge lifting weight, ensure the stable operation of the crane during the lifting process, and avoid safety accidents caused by reducer failures.
In side-mounting working conditions, for example, the installation of some special industrial equipment requires the equipment to be mounted sideways and perform rotating operations. Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer can adapt to this special installation method, provide stable rotating power, and ensure the normal operation of the equipment after side mounting. In working conditions with large overturning force, such as the installation and maintenance of large-scale wind power generation equipment, the reducer needs to withstand huge overturning moment in harsh environments such as strong winds. The anti-overturning stabilizing ring and high-rigidity design of the reducer can ensure its reliable operation even under such extreme working conditions, providing strong support for the stable operation of wind power generation equipment.
With its increased gear module, unique transmission structure, anti-overturning stabilizing ring and wide working condition adaptability, Zhuochuang Jingrui ZCTZ Heavy Duty Hollow Rotary Platform Gear Reducer has become an ideal choice for transmission equipment under heavy-duty working conditions. In the future industrial development, it will continue to play an important role, promote technological progress in the heavy-duty field, and contribute to the production upgrading and efficiency improvement of various industries.

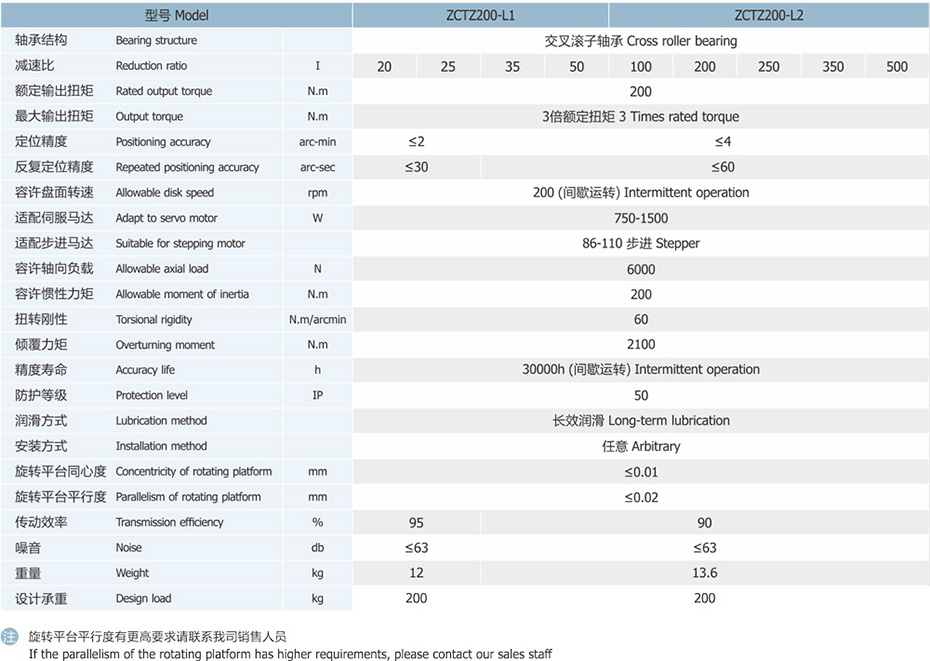

Product Parameter
