Product Description
Against the backdrop of the surging wave of industrial automation, various mechanical equipment impose nearly stringent requirements on transmission systems. Especially when facing large inertia loads, high-precision transmission and complex and variable working conditions, a high-performance, stable and reliable gear reducer has become the key for enterprises to improve production efficiency and ensure product quality. Among the ZCA Square Housing Precision Planetary Gear Reducer series, the 42 Frame Precision Planetary Gear Reducer stands out with its unique design, excellent performance and remarkable advantages, emerging as a shining star in the field of industrial transmission.
The high-rigidity square housing structural design adopted by the ZCA Square Housing Precision Planetary Gear Reducer provides a solid guarantee for the stable operation of the 42 Frame Precision Planetary Gear Reducer . The unique geometric shape of the square housing endows it with extremely high torsional stiffness, a characteristic that is particularly crucial when coping with large inertia load working conditions. In large-scale stamping equipment, the punch generates enormous instantaneous torque when falling at high speed and impacting workpieces. Relying on its high-rigidity square housing, the 42 Frame Precision Planetary Gear Reducer can effectively resist the impact of these strong torques like a sturdy fortress, ensuring the body is not damaged by excessive torsion, thus guaranteeing the stability and continuity of the stamping process.
At the same time, the square housing design also excels in installation stability. Its flat surfaces and regular shape enable the gear reducer to fit closely with the equipment base during installation, greatly reducing installation errors. In the conveying system of automated production lines, the 42 Frame Precision Planetary Gear Reducer provides continuous and stable power support for the conveyor belt through the firm installation of the square housing and the conveying frame. Even under long-term high-load operation, it can ensure the smooth movement of materials during transportation, avoiding problems such as material jitter and offset caused by unstable gear reducer installation, and effectively improving the overall operation efficiency and reliability of the production line. Such excellent installation stability enables the 42 Frame Precision Planetary Gear Reducer to perfectly adapt to various large inertia load working conditions, providing strong support for the stable operation of heavy-duty equipment.
The built-in precision planetary gear transmission system is the core highlight of the 42 Frame Precision Planetary Gear Reducer . Among them, the unique design of the 42 precision planetary gears endows the gear reducer with outstanding performance. Compared with ordinary gears, the 42 precision planetary gears have been carefully optimized in parameters such as tooth profile and tooth direction, making the meshing between gears closer and smoother. During the transmission process, this tight meshing can effectively reduce the generation of backlash and achieve low-backlash transmission. Low backlash means the angular error between the input shaft and the output shaft is extremely small, which can ensure high-precision positioning and motion control of the equipment during operation.
In the field of robot joint drive, the low-backlash characteristic of the 42 Frame Precision Planetary Gear Reducer plays a vital role. Robotic arms need to complete various complex actions such as grasping, placing and assembling, and the precision of these actions directly affects the working effect of the robot. The 42 Frame Precision Planetary Gear Reducer can accurately convert the rotational motion of the motor into the linear or rotational motion of robot joints, ensuring the robotic arm can reach the designated position accurately and greatly improving the operational precision and work efficiency of the robot.
In addition to low backlash, the 42 Frame Precision Planetary Gear Reducer can also achieve high torque output. Its unique planetary transmission structure distributes the load evenly through multiple planetary gears at the same time, realizing the uniform distribution and efficient transmission of torque. In hoisting equipment in mining machinery, the 42 Frame Precision Planetary Gear Reducer can convert the high-speed rotation of the motor into low-speed and high-torque output, easily hoisting ores and equipment weighing several tons or even dozens of tons. Moreover, while achieving high torque output, the 42 Frame Precision Planetary Gear Reducer can also maintain low temperature rise. This benefits from its optimized heat dissipation design and high transmission efficiency, which reduce energy loss during transmission and the heat generated inside the gear reducer, thus ensuring the stability and reliability of the gear reducer during long-term high-load operation.
To ensure the high performance and long service life of the 42 Frame Precision Planetary Gear Reducer , ZCA pursues the ultimate in material selection and processing technology. It adopts an integrated housing design, integrating all components in a sturdy housing, which reduces the possibility of connection and loosening between parts and improves the overall rigidity and sealing performance of the gear reducer. The integrated housing is like a sealed fortress, which can effectively prevent impurities such as dust and moisture from entering the gear reducer, protecting key components such as gears and bearings from corrosion and wear.
High-strength alloy gear material is another quality guarantee of the 42 Frame Precision Planetary Gear Reducer . This alloy material features high strength, high hardness and good wear resistance, and can withstand the long-term action of high torque and heavy load without deformation or damage. After precision heat treatment and multiple gear processing processes, parameters such as the tooth profile and tooth direction of the gears meet extremely high precision standards. Precision heat treatment can adjust the internal tissue structure of the gears, improve their hardness and toughness, and enhance the fatigue resistance of the gears; multiple gear processing processes can ensure the surface finish and dimensional accuracy of the gears, reduce friction and noise during gear meshing, and improve transmission efficiency. Tests show that the transmission efficiency of the 42 Frame Precision Planetary Gear Reducer is ≥97%, and this high-efficiency transmission can save a lot of energy consumption for enterprises and reduce production costs.
In market competition, the 42 Frame Precision Planetary Gear Reducer also has a significant advantage in replacing imported products. It can perfectly replace products of well-known brands such as Taiwan Liming gear reducers and Taiwan Apex gear reducers. Compared with imported gear reducers, the 42 Frame Precision Planetary Gear Reducer is not inferior in performance, and even has unique advantages in some aspects. For example, in terms of customized services, ZCA can carry out personalized design and manufacturing of the 42 Frame Precision Planetary Gear Reducer according to the specific needs and application scenarios of customers. Whether it is special installation dimensions, different transmission ratio requirements or specific usage environments, ZCA can provide customers with tailor-made solutions.
At the same time, the 42 Frame Precision Planetary Gear Reducer has greater competitiveness in price. Due to the relatively low domestic production costs and localized supply chain advantages, ZCA can provide customers with more cost-effective products. When enterprises choose the 42 Frame Precision Planetary Gear Reducer , they can not only obtain high-quality transmission solutions, but also effectively reduce equipment procurement costs and improve the economic benefits of enterprises.
As a member of the ZCA Square Housing Precision Planetary Gear Reducer series, the 42 Frame Precision Planetary Gear Reducer has become an ideal choice in the field of industrial transmission with its innovative square housing design, precise planetary gear transmission, high-quality material technology and significant advantage in replacing imported products. It provides stable, efficient and precise power transmission for various mechanical equipment, helping enterprises improve production efficiency and reduce operating costs in the fierce market competition, and driving the vigorous development of industry towards higher quality and greater efficiency.
At the same time, the square housing design also excels in installation stability. Its flat surfaces and regular shape enable the gear reducer to fit closely with the equipment base during installation, greatly reducing installation errors. In the conveying system of automated production lines, the 42 Frame Precision Planetary Gear Reducer provides continuous and stable power support for the conveyor belt through the firm installation of the square housing and the conveying frame. Even under long-term high-load operation, it can ensure the smooth movement of materials during transportation, avoiding problems such as material jitter and offset caused by unstable gear reducer installation, and effectively improving the overall operation efficiency and reliability of the production line. Such excellent installation stability enables the 42 Frame Precision Planetary Gear Reducer to perfectly adapt to various large inertia load working conditions, providing strong support for the stable operation of heavy-duty equipment.
The built-in precision planetary gear transmission system is the core highlight of the 42 Frame Precision Planetary Gear Reducer . Among them, the unique design of the 42 precision planetary gears endows the gear reducer with outstanding performance. Compared with ordinary gears, the 42 precision planetary gears have been carefully optimized in parameters such as tooth profile and tooth direction, making the meshing between gears closer and smoother. During the transmission process, this tight meshing can effectively reduce the generation of backlash and achieve low-backlash transmission. Low backlash means the angular error between the input shaft and the output shaft is extremely small, which can ensure high-precision positioning and motion control of the equipment during operation.
In the field of robot joint drive, the low-backlash characteristic of the 42 Frame Precision Planetary Gear Reducer plays a vital role. Robotic arms need to complete various complex actions such as grasping, placing and assembling, and the precision of these actions directly affects the working effect of the robot. The 42 Frame Precision Planetary Gear Reducer can accurately convert the rotational motion of the motor into the linear or rotational motion of robot joints, ensuring the robotic arm can reach the designated position accurately and greatly improving the operational precision and work efficiency of the robot.
In addition to low backlash, the 42 Frame Precision Planetary Gear Reducer can also achieve high torque output. Its unique planetary transmission structure distributes the load evenly through multiple planetary gears at the same time, realizing the uniform distribution and efficient transmission of torque. In hoisting equipment in mining machinery, the 42 Frame Precision Planetary Gear Reducer can convert the high-speed rotation of the motor into low-speed and high-torque output, easily hoisting ores and equipment weighing several tons or even dozens of tons. Moreover, while achieving high torque output, the 42 Frame Precision Planetary Gear Reducer can also maintain low temperature rise. This benefits from its optimized heat dissipation design and high transmission efficiency, which reduce energy loss during transmission and the heat generated inside the gear reducer, thus ensuring the stability and reliability of the gear reducer during long-term high-load operation.
To ensure the high performance and long service life of the 42 Frame Precision Planetary Gear Reducer , ZCA pursues the ultimate in material selection and processing technology. It adopts an integrated housing design, integrating all components in a sturdy housing, which reduces the possibility of connection and loosening between parts and improves the overall rigidity and sealing performance of the gear reducer. The integrated housing is like a sealed fortress, which can effectively prevent impurities such as dust and moisture from entering the gear reducer, protecting key components such as gears and bearings from corrosion and wear.
High-strength alloy gear material is another quality guarantee of the 42 Frame Precision Planetary Gear Reducer . This alloy material features high strength, high hardness and good wear resistance, and can withstand the long-term action of high torque and heavy load without deformation or damage. After precision heat treatment and multiple gear processing processes, parameters such as the tooth profile and tooth direction of the gears meet extremely high precision standards. Precision heat treatment can adjust the internal tissue structure of the gears, improve their hardness and toughness, and enhance the fatigue resistance of the gears; multiple gear processing processes can ensure the surface finish and dimensional accuracy of the gears, reduce friction and noise during gear meshing, and improve transmission efficiency. Tests show that the transmission efficiency of the 42 Frame Precision Planetary Gear Reducer is ≥97%, and this high-efficiency transmission can save a lot of energy consumption for enterprises and reduce production costs.
In market competition, the 42 Frame Precision Planetary Gear Reducer also has a significant advantage in replacing imported products. It can perfectly replace products of well-known brands such as Taiwan Liming gear reducers and Taiwan Apex gear reducers. Compared with imported gear reducers, the 42 Frame Precision Planetary Gear Reducer is not inferior in performance, and even has unique advantages in some aspects. For example, in terms of customized services, ZCA can carry out personalized design and manufacturing of the 42 Frame Precision Planetary Gear Reducer according to the specific needs and application scenarios of customers. Whether it is special installation dimensions, different transmission ratio requirements or specific usage environments, ZCA can provide customers with tailor-made solutions.
At the same time, the 42 Frame Precision Planetary Gear Reducer has greater competitiveness in price. Due to the relatively low domestic production costs and localized supply chain advantages, ZCA can provide customers with more cost-effective products. When enterprises choose the 42 Frame Precision Planetary Gear Reducer , they can not only obtain high-quality transmission solutions, but also effectively reduce equipment procurement costs and improve the economic benefits of enterprises.
As a member of the ZCA Square Housing Precision Planetary Gear Reducer series, the 42 Frame Precision Planetary Gear Reducer has become an ideal choice in the field of industrial transmission with its innovative square housing design, precise planetary gear transmission, high-quality material technology and significant advantage in replacing imported products. It provides stable, efficient and precise power transmission for various mechanical equipment, helping enterprises improve production efficiency and reduce operating costs in the fierce market competition, and driving the vigorous development of industry towards higher quality and greater efficiency.

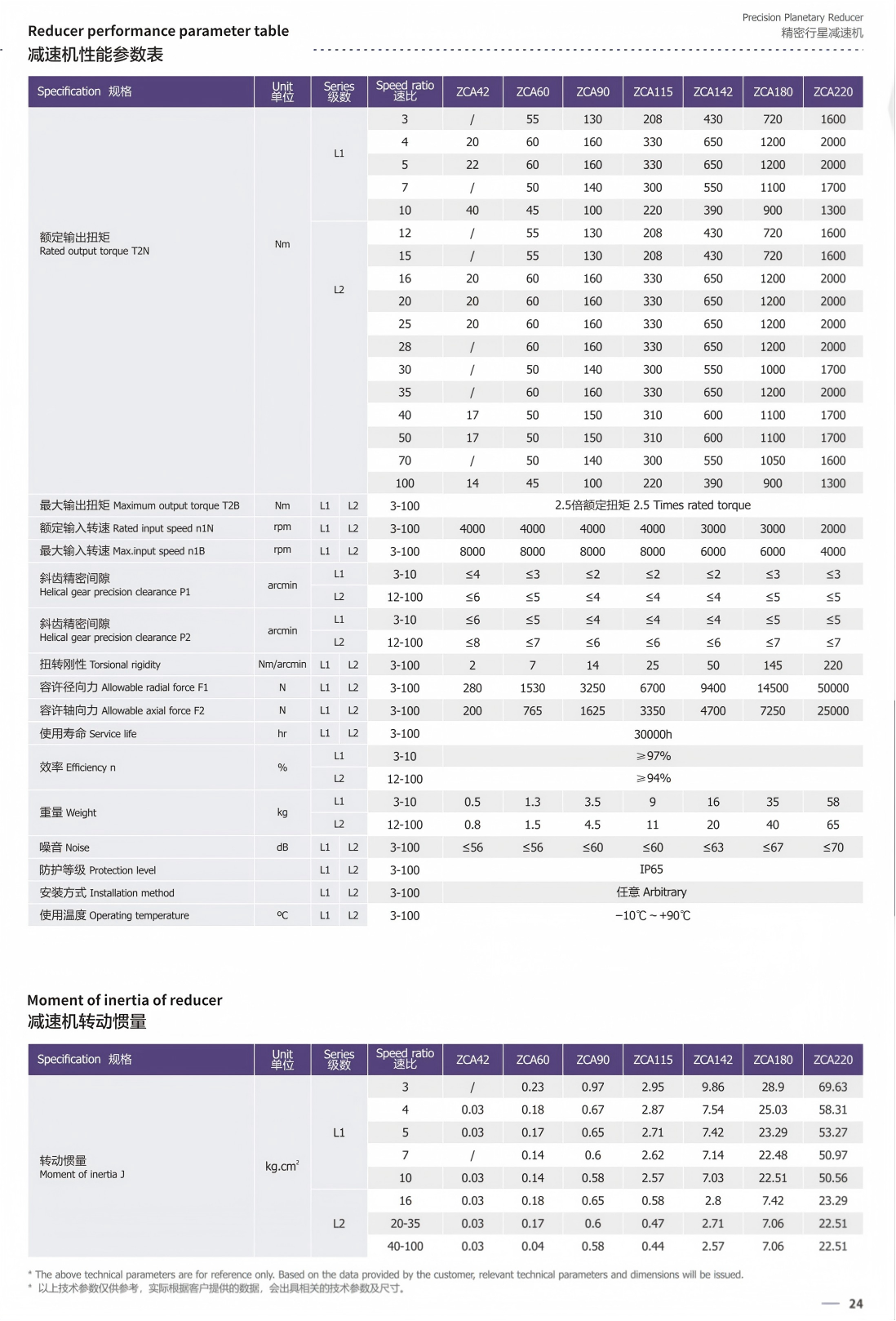

Product Parameter
