Product Description
In the era of booming industrial automation, various mechanical equipment impose increasingly stringent requirements on transmission systems. A precise, stable, efficient transmission device that can adapt to complex working conditions has become a key factor driving industrial production to a higher level. The ZCA Square Housing Precision Planetary Gearbox has emerged in the market with its outstanding performance, and among its lineup, the Fully Automatic Servo-Driven Precision Planetary Gearbox has become an ideal choice for numerous industrial scenarios by virtue of a series of prominent advantages, injecting strong impetus into the development of industrial automation.
The high-rigidity square housing structural design adopted by the ZCA Square Housing Precision Planetary Gearbox provides a solid support for fully automatic servo systems. On industrial automated production lines, equipment often needs to cope with various complex and high-intensity work tasks, and large inertia load working conditions are common. For example, in large CNC machine tools, the spindle generates enormous inertial force during high-speed rotation and rapid start-stop processes. The high-rigidity square housing of the Fully Automatic Servo-Driven Precision Planetary Gearbox is like a sturdy fortress, which can effectively resist the torsional impact caused by these inertial forces, ensuring the body remains stable during operation and that transmission precision and equipment service life are not affected by excessive torsion.
This square housing design also greatly improves installation stability. On automated assembly lines, multiple devices need to cooperate closely and work in synergy, imposing extremely high requirements on the installation accuracy of the gearbox. The square housing of the Fully Automatic Servo-Driven Precision Planetary Gearbox has a regular shape and flat surfaces, which can fit precisely with the installation base and reduce installation errors. In the installation of robot joints, its stable installation characteristics can ensure accurate joint transmission when the robot performs various complex actions, thereby improving the motion precision and work reliability of the robot, enabling it to complete grasping, handling, assembly and other tasks more flexibly and accurately.
Fully automatic servo systems have extremely high requirements for the precision and response speed of transmission devices, and the built-in precision planetary gear transmission system of the Fully Automatic Servo-Driven Precision Planetary Gearbox perfectly meets this demand. The transmission system achieves an extremely low backlash through elaborate design and optimization. Low backlash means the angular error between the input shaft and the output shaft is minimal, which can ensure that the fully automatic servo system can quickly and accurately transmit power to the actuator after receiving control signals, realizing high-precision positioning and motion control.
In semiconductor manufacturing equipment, the processing precision requirements for chips have reached the nanometer level. The low-backlash characteristic of the Fully Automatic Servo-Driven Precision Planetary Gearbox can ensure the precise movement of the processing head in three-dimensional space, realizing microfabrication of chips such as photolithography and etching processes, greatly improving the manufacturing quality and yield of chips. At the same time, the gearbox can also achieve high torque output and drive various large-load actuators. In automated stamping equipment, a strong torque is required to drive the punch to perform stamping forming on metal sheets. Relying on its high torque output capability, the Fully Automatic Servo-Driven Precision Planetary Gearbox can easily cope with this working condition, ensuring a stable and powerful stamping process and producing high-quality stamped parts.
Moreover, the Fully Automatic Servo-Driven Precision Planetary Gearbox can maintain a low temperature rise while achieving high torque output. On automated production lines operating continuously for a long time, the heat generation of equipment cannot be ignored. Excessively high temperatures will not only affect the performance and service life of the gearbox itself, but may also cause thermal interference to surrounding electronic and mechanical components, affecting the stability of the entire system. Through optimized heat dissipation design and efficient transmission structure, the gearbox reduces energy loss during transmission and the generation of internal heat. Even when working for a long time in a high-temperature environment, it can control the temperature rise within a reasonable range, ensuring the stable operation of the fully automatic servo system and saving enterprises losses caused by equipment failure shutdowns.
To ensure the high performance and long service life of the Fully Automatic Servo-Driven Precision Planetary Gearbox , ZCA pursues the ultimate in material selection and processing technology. It adopts an integrated housing design, integrating all components in a sturdy housing, which reduces the possibility of connection and loosening between parts and improves the overall rigidity and sealing performance of the gearbox. The integrated housing is like a sealed protective cover, which can effectively prevent impurities such as dust and moisture from entering the gearbox, protecting key components such as gears and bearings from corrosion and wear.
In food packaging automated production lines, the environment is often relatively humid and there is a certain amount of dust. The integrated housing design of the Fully Automatic Servo-Driven Precision Planetary Gearbox can block the entry of these harmful substances, providing a clean and stable working environment for internal parts, ensuring the gearbox can still operate normally in harsh environments and guaranteeing the efficiency and hygiene of food packaging production.
High-strength alloy gear material is another quality guarantee of the Fully Automatic Servo-Driven Precision Planetary Gearbox . This alloy material features high strength, high hardness and good wear resistance, and can withstand the long-term action of high torque and heavy load without deformation or damage. After precision heat treatment and multiple gear processing processes, parameters such as the tooth profile and tooth direction of the gears meet extremely high precision standards. Precision heat treatment can adjust the internal tissue structure of the gears, improve their hardness and toughness, and enhance the fatigue resistance of the gears; multiple gear processing processes can ensure the surface finish and dimensional accuracy of the gears, reduce friction and noise during gear meshing, and improve transmission efficiency. Tests show that the transmission efficiency of the Fully Automatic Servo-Driven Precision Planetary Gearbox is ≥97%, and this high-efficiency transmission can save a lot of energy consumption for enterprises and reduce production costs.
In market competition, the Fully Automatic Servo-Driven Precision Planetary Gearbox also has a significant advantage in replacing imported products. It can perfectly replace products of well-known brands such as Taiwan Liming gearboxes and Taiwan Apex gearboxes. Compared with imported gearboxes, the Fully Automatic Servo-Driven Precision Planetary Gearbox is not inferior in performance, and even has unique advantages in some aspects.
For example, in terms of after-sales service, ZCA has a professional technical team and a complete after-sales service network, which can respond to customer needs in a timely manner and provide customers with fast and efficient maintenance and technical support services. Due to restrictions such as region and language, imported gearboxes often have a certain lag in after-sales service. When equipment fails, the timely maintenance of the Fully Automatic Servo-Driven Precision Planetary Gearbox can reduce enterprise downtime and production losses.
At the same time, the Fully Automatic Servo-Driven Precision Planetary Gearbox has greater competitiveness in price. Due to the relatively low domestic production costs and localized supply chain advantages, ZCA can provide customers with more cost-effective products. When enterprises choose the Fully Automatic Servo-Driven Precision Planetary Gearbox , they can not only obtain high-quality transmission solutions, but also effectively reduce equipment procurement costs and improve the economic benefits of enterprises. In today's era of frequent upgrading and replacement of automated equipment, choosing a cost-effective Fully Automatic Servo-Driven Precision Planetary Gearbox is undoubtedly a wise move for enterprises to achieve sustainable development.
As a member of the ZCA Square Housing Precision Planetary Gearbox series, the Fully Automatic Servo-Driven Precision Planetary Gearbox has become a leader of transmission devices in the field of industrial automation with its innovative square housing design, precise transmission adapted to fully automatic servo systems, high-quality material technology and significant advantage in replacing imported products. It provides a strong guarantee for the efficient and stable operation of various automated equipment, helping industrial production move towards intelligence, automation and high efficiency, and is bound to play a more important role in the future industrial development.
The high-rigidity square housing structural design adopted by the ZCA Square Housing Precision Planetary Gearbox provides a solid support for fully automatic servo systems. On industrial automated production lines, equipment often needs to cope with various complex and high-intensity work tasks, and large inertia load working conditions are common. For example, in large CNC machine tools, the spindle generates enormous inertial force during high-speed rotation and rapid start-stop processes. The high-rigidity square housing of the Fully Automatic Servo-Driven Precision Planetary Gearbox is like a sturdy fortress, which can effectively resist the torsional impact caused by these inertial forces, ensuring the body remains stable during operation and that transmission precision and equipment service life are not affected by excessive torsion.
Fully automatic servo systems have extremely high requirements for the precision and response speed of transmission devices, and the built-in precision planetary gear transmission system of the Fully Automatic Servo-Driven Precision Planetary Gearbox perfectly meets this demand. The transmission system achieves an extremely low backlash through elaborate design and optimization. Low backlash means the angular error between the input shaft and the output shaft is minimal, which can ensure that the fully automatic servo system can quickly and accurately transmit power to the actuator after receiving control signals, realizing high-precision positioning and motion control.
In semiconductor manufacturing equipment, the processing precision requirements for chips have reached the nanometer level. The low-backlash characteristic of the Fully Automatic Servo-Driven Precision Planetary Gearbox can ensure the precise movement of the processing head in three-dimensional space, realizing microfabrication of chips such as photolithography and etching processes, greatly improving the manufacturing quality and yield of chips. At the same time, the gearbox can also achieve high torque output and drive various large-load actuators. In automated stamping equipment, a strong torque is required to drive the punch to perform stamping forming on metal sheets. Relying on its high torque output capability, the Fully Automatic Servo-Driven Precision Planetary Gearbox can easily cope with this working condition, ensuring a stable and powerful stamping process and producing high-quality stamped parts.
Moreover, the Fully Automatic Servo-Driven Precision Planetary Gearbox can maintain a low temperature rise while achieving high torque output. On automated production lines operating continuously for a long time, the heat generation of equipment cannot be ignored. Excessively high temperatures will not only affect the performance and service life of the gearbox itself, but may also cause thermal interference to surrounding electronic and mechanical components, affecting the stability of the entire system. Through optimized heat dissipation design and efficient transmission structure, the gearbox reduces energy loss during transmission and the generation of internal heat. Even when working for a long time in a high-temperature environment, it can control the temperature rise within a reasonable range, ensuring the stable operation of the fully automatic servo system and saving enterprises losses caused by equipment failure shutdowns.
To ensure the high performance and long service life of the Fully Automatic Servo-Driven Precision Planetary Gearbox , ZCA pursues the ultimate in material selection and processing technology. It adopts an integrated housing design, integrating all components in a sturdy housing, which reduces the possibility of connection and loosening between parts and improves the overall rigidity and sealing performance of the gearbox. The integrated housing is like a sealed protective cover, which can effectively prevent impurities such as dust and moisture from entering the gearbox, protecting key components such as gears and bearings from corrosion and wear.
In food packaging automated production lines, the environment is often relatively humid and there is a certain amount of dust. The integrated housing design of the Fully Automatic Servo-Driven Precision Planetary Gearbox can block the entry of these harmful substances, providing a clean and stable working environment for internal parts, ensuring the gearbox can still operate normally in harsh environments and guaranteeing the efficiency and hygiene of food packaging production.
High-strength alloy gear material is another quality guarantee of the Fully Automatic Servo-Driven Precision Planetary Gearbox . This alloy material features high strength, high hardness and good wear resistance, and can withstand the long-term action of high torque and heavy load without deformation or damage. After precision heat treatment and multiple gear processing processes, parameters such as the tooth profile and tooth direction of the gears meet extremely high precision standards. Precision heat treatment can adjust the internal tissue structure of the gears, improve their hardness and toughness, and enhance the fatigue resistance of the gears; multiple gear processing processes can ensure the surface finish and dimensional accuracy of the gears, reduce friction and noise during gear meshing, and improve transmission efficiency. Tests show that the transmission efficiency of the Fully Automatic Servo-Driven Precision Planetary Gearbox is ≥97%, and this high-efficiency transmission can save a lot of energy consumption for enterprises and reduce production costs.
In market competition, the Fully Automatic Servo-Driven Precision Planetary Gearbox also has a significant advantage in replacing imported products. It can perfectly replace products of well-known brands such as Taiwan Liming gearboxes and Taiwan Apex gearboxes. Compared with imported gearboxes, the Fully Automatic Servo-Driven Precision Planetary Gearbox is not inferior in performance, and even has unique advantages in some aspects.
For example, in terms of after-sales service, ZCA has a professional technical team and a complete after-sales service network, which can respond to customer needs in a timely manner and provide customers with fast and efficient maintenance and technical support services. Due to restrictions such as region and language, imported gearboxes often have a certain lag in after-sales service. When equipment fails, the timely maintenance of the Fully Automatic Servo-Driven Precision Planetary Gearbox can reduce enterprise downtime and production losses.
At the same time, the Fully Automatic Servo-Driven Precision Planetary Gearbox has greater competitiveness in price. Due to the relatively low domestic production costs and localized supply chain advantages, ZCA can provide customers with more cost-effective products. When enterprises choose the Fully Automatic Servo-Driven Precision Planetary Gearbox , they can not only obtain high-quality transmission solutions, but also effectively reduce equipment procurement costs and improve the economic benefits of enterprises. In today's era of frequent upgrading and replacement of automated equipment, choosing a cost-effective Fully Automatic Servo-Driven Precision Planetary Gearbox is undoubtedly a wise move for enterprises to achieve sustainable development.
As a member of the ZCA Square Housing Precision Planetary Gearbox series, the Fully Automatic Servo-Driven Precision Planetary Gearbox has become a leader of transmission devices in the field of industrial automation with its innovative square housing design, precise transmission adapted to fully automatic servo systems, high-quality material technology and significant advantage in replacing imported products. It provides a strong guarantee for the efficient and stable operation of various automated equipment, helping industrial production move towards intelligence, automation and high efficiency, and is bound to play a more important role in the future industrial development.

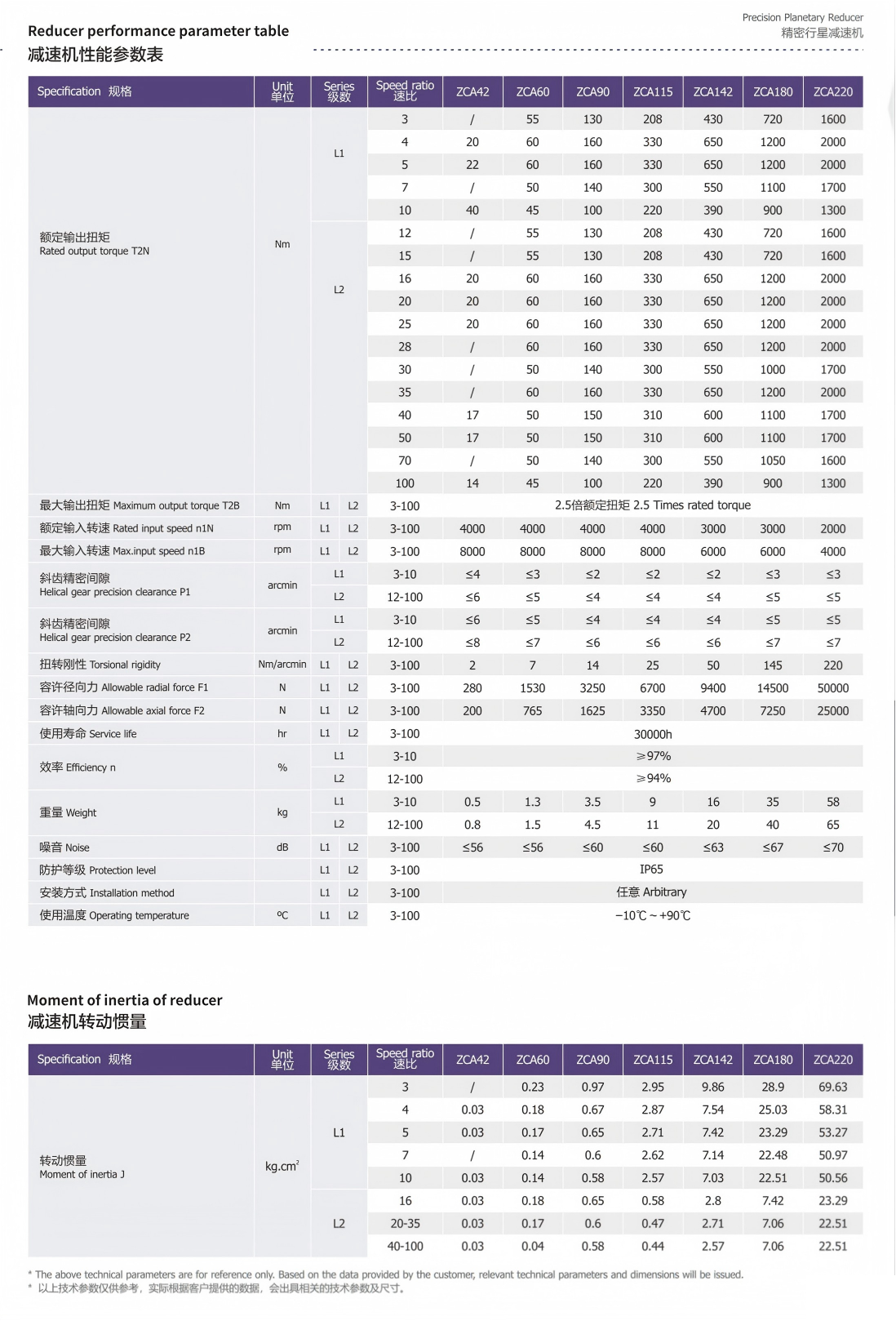

Product Parameter
