Product Description
As industrial automation continues to reach new heights, the performance requirements for transmission devices in rotating stations have become increasingly stringent. They must not only possess strong power output capabilities but also achieve excellent standards in precision, stability, and noise control. The ZCD Disc-Type Helical Precision Planetary Gear Reducer, as an outstanding representative of Disc Output Planetary Gear Reducer s, perfectly meets the rigorous demands of modern industry for high dynamic response rotating stations with its unique design and advanced technology, becoming a key force driving efficient and precise industrial production.
The most striking feature of the ZCD Disc-Type Helical Precision Planetary Gear Reducer is its disc output structure, which is also the core advantage of the Disc Output Planetary Gear Reducer . Its output is a disc surface, and this unique design allows it to be directly connected to high-speed rotating components in working conditions. In many industrial scenarios, such as the drive of high-speed rotating cutting tools and high-speed material conveying turntables, the output method of traditional reducers often requires multiple intermediate transmission links to transmit power to the rotating components. This not only increases the complexity and failure rate of the system but also leads to significant energy loss. The disc output method of the Disc Output Planetary Gear Reducer , like a direct high-speed channel, can directly and efficiently transmit power to the rotating workpiece, reducing energy loss and error accumulation caused by intermediate transmission links, and greatly improving transmission efficiency.
The disc-type structural design of the Disc Output Planetary Gear Reducer also provides great convenience for direct connection with workbenches or fixtures. In the field of precision machining and assembly, the installation accuracy of workbenches and fixtures directly affects product processing quality. Due to the limitations of their output structure, traditional reducers often require additional connectors and complex installation processes when connecting to workbenches or fixtures, which not only increases installation costs and time but also makes it difficult to ensure connection precision and stability. In contrast, the Disc Output Planetary Gear Reducer can be directly connected to workbenches or fixtures. Its flat disc surface can fit closely with the connection surface, reducing connection gaps and effectively improving system rigidity. The enhanced system rigidity prevents the reducer from deforming easily when subjected to large external forces, thereby ensuring transmission precision and providing reliable guarantee for high-precision machining and assembly. For example, in the precision assembly process of electronic chips, the direct connection between the Disc Output Planetary Gear Reducer and the workbench can ensure the positional accuracy of chips during assembly, greatly improving assembly quality and production efficiency.
As a Disc Output Planetary Gear Reducer , ZCD adopts an advanced helical planetary transmission scheme, which is the key to its stable and low-noise operation. In traditional spur planetary transmission, gears make instantaneous contact and separation during meshing. This sudden contact and separation generate large impact forces and noise, and also affect the service life and transmission efficiency of the gears. In contrast, helical planetary transmission is different: the tooth surfaces of helical gears gradually enter and exit meshing. This gradual meshing method makes the gears subject to more uniform forces during transmission, reducing impact and vibration, thereby achieving stable and low-noise operation.
In practical applications, the helical gear transmission scheme of the Disc Output Planetary Gear Reducer brings significant advantages. In visual alignment systems, extremely high requirements are placed on the stability and quietness of equipment. Any slight vibration and noise may affect the imaging quality and positioning accuracy of the camera. The helical gear transmission of the Disc Output Planetary Gear Reducer can effectively reduce vibration caused by gear meshing impact, enabling the camera to capture image information of target objects more stably and improving the accuracy and efficiency of visual alignment. At the same time, the low-noise operating environment provides a more comfortable working atmosphere for operators, reducing the damage of noise to their health. Professional tests have shown that the noise of this Disc Output Planetary Gear Reducer during operation is significantly lower than that of traditional spur planetary reducers, creating a quieter and more efficient working environment for industrial production.
The high-precision performance of the Disc Output Planetary Gear Reducer is inseparable from precise manufacturing processes. Among them, precision ground gears combined with preload adjustment technology are the key links to ensuring stable repeat positioning accuracy and backlash control. During the gear manufacturing process, the precision grinding process can finely process the tooth surfaces of the gears, removing tiny flaws and burrs on the surface to make the tooth surfaces smoother and flatter. Smooth tooth surfaces can reduce friction during gear meshing, reduce wear, and thereby improve the service life and transmission efficiency of the gears.
Preload adjustment technology is used to precisely control the meshing clearance of the gears. By adjusting the preload between the gears, the backlash can be controlled within an extremely small range of ≤4 arcmin. Backlash is one of the important indicators to measure the precision of the reducer. A smaller backlash means that when switching between forward and reverse rotation, the positional deviation of the output end is smaller, and the repeat positioning accuracy is higher. In semiconductor manufacturing equipment, the processing precision requirements for components have reached the nanometer level. The low backlash characteristic of the Disc Output Planetary Gear Reducer can ensure that the equipment achieves high-precision intermittent or continuous rotary motion during operation, meeting the high-precision requirements of semiconductor manufacturing. For example, in the wafer cutting process, the Disc Output Planetary Gear Reducer can precisely control the position and motion trajectory of the cutting tool, ensuring cutting precision and quality, and improving wafer utilization and production efficiency.
The Disc Output Planetary Gear Reducer has a wide adaptability and can perfectly match mainstream servo motors. Servo motors are characterized by high precision and high response speed, and the Disc Output Planetary Gear Reducer can reduce the speed and increase the torque of their high-speed rotating power while maintaining high-precision transmission. This adaptability enables the Disc Output Planetary Gear Reducer to be widely used in multiple fields such as multi-station turntables, visual alignment systems, and precision assembly equipment.
In multi-station turntables, the Disc Output Planetary Gear Reducer , combined with servo motors, can realize high-speed and high-precision intermittent or continuous rotary motion of the turntable. Different stations can accurately reach designated positions during the rotation of the turntable to complete corresponding processing or assembly tasks, greatly improving production efficiency. For example, in the multi-station processing of auto parts, the Disc Output Planetary Gear Reducer can ensure the positional accuracy of each station during the high-speed rotation of the turntable, allowing each part to be processed in the correct position and improving product quality and consistency.
In visual alignment systems, the Disc Output Planetary Gear Reducer provides precise power support for the rotation and positioning of cameras, enabling cameras to quickly and accurately capture image information of target objects and provide reliable data for subsequent image processing and analysis. In precision assembly equipment, the combination of the Disc Output Planetary Gear Reducer and servo motors can realize precise grasping, handling, and assembly of components, ensuring the accuracy and stability of the assembly process. Whether it is tiny electronic components or large mechanical parts, the Disc Output Planetary Gear Reducer can meet the needs of different assembly scenarios with its high-precision and high-stability performance.
As a model of Disc Output Planetary Gear Reducer s, the ZCD Disc-Type Helical Precision Planetary Gear Reducer has demonstrated strong competitiveness and broad application prospects in the field of industrial automation with its unique disc output design, stable and low-noise helical gear transmission, high-precision guarantee from precise processes, and wide adaptability. It provides an efficient, stable, and precise transmission solution for high dynamic response rotating stations in industrial production, helping industrial production move towards a higher level.
Would you like me to create a comparison table between this reducer and traditional planetary reducers to highlight its unique advantages?
The disc-type structural design of the Disc Output Planetary Gear Reducer also provides great convenience for direct connection with workbenches or fixtures. In the field of precision machining and assembly, the installation accuracy of workbenches and fixtures directly affects product processing quality. Due to the limitations of their output structure, traditional reducers often require additional connectors and complex installation processes when connecting to workbenches or fixtures, which not only increases installation costs and time but also makes it difficult to ensure connection precision and stability. In contrast, the Disc Output Planetary Gear Reducer can be directly connected to workbenches or fixtures. Its flat disc surface can fit closely with the connection surface, reducing connection gaps and effectively improving system rigidity. The enhanced system rigidity prevents the reducer from deforming easily when subjected to large external forces, thereby ensuring transmission precision and providing reliable guarantee for high-precision machining and assembly. For example, in the precision assembly process of electronic chips, the direct connection between the Disc Output Planetary Gear Reducer and the workbench can ensure the positional accuracy of chips during assembly, greatly improving assembly quality and production efficiency.
As a Disc Output Planetary Gear Reducer , ZCD adopts an advanced helical planetary transmission scheme, which is the key to its stable and low-noise operation. In traditional spur planetary transmission, gears make instantaneous contact and separation during meshing. This sudden contact and separation generate large impact forces and noise, and also affect the service life and transmission efficiency of the gears. In contrast, helical planetary transmission is different: the tooth surfaces of helical gears gradually enter and exit meshing. This gradual meshing method makes the gears subject to more uniform forces during transmission, reducing impact and vibration, thereby achieving stable and low-noise operation.
In practical applications, the helical gear transmission scheme of the Disc Output Planetary Gear Reducer brings significant advantages. In visual alignment systems, extremely high requirements are placed on the stability and quietness of equipment. Any slight vibration and noise may affect the imaging quality and positioning accuracy of the camera. The helical gear transmission of the Disc Output Planetary Gear Reducer can effectively reduce vibration caused by gear meshing impact, enabling the camera to capture image information of target objects more stably and improving the accuracy and efficiency of visual alignment. At the same time, the low-noise operating environment provides a more comfortable working atmosphere for operators, reducing the damage of noise to their health. Professional tests have shown that the noise of this Disc Output Planetary Gear Reducer during operation is significantly lower than that of traditional spur planetary reducers, creating a quieter and more efficient working environment for industrial production.
The high-precision performance of the Disc Output Planetary Gear Reducer is inseparable from precise manufacturing processes. Among them, precision ground gears combined with preload adjustment technology are the key links to ensuring stable repeat positioning accuracy and backlash control. During the gear manufacturing process, the precision grinding process can finely process the tooth surfaces of the gears, removing tiny flaws and burrs on the surface to make the tooth surfaces smoother and flatter. Smooth tooth surfaces can reduce friction during gear meshing, reduce wear, and thereby improve the service life and transmission efficiency of the gears.
Preload adjustment technology is used to precisely control the meshing clearance of the gears. By adjusting the preload between the gears, the backlash can be controlled within an extremely small range of ≤4 arcmin. Backlash is one of the important indicators to measure the precision of the reducer. A smaller backlash means that when switching between forward and reverse rotation, the positional deviation of the output end is smaller, and the repeat positioning accuracy is higher. In semiconductor manufacturing equipment, the processing precision requirements for components have reached the nanometer level. The low backlash characteristic of the Disc Output Planetary Gear Reducer can ensure that the equipment achieves high-precision intermittent or continuous rotary motion during operation, meeting the high-precision requirements of semiconductor manufacturing. For example, in the wafer cutting process, the Disc Output Planetary Gear Reducer can precisely control the position and motion trajectory of the cutting tool, ensuring cutting precision and quality, and improving wafer utilization and production efficiency.
The Disc Output Planetary Gear Reducer has a wide adaptability and can perfectly match mainstream servo motors. Servo motors are characterized by high precision and high response speed, and the Disc Output Planetary Gear Reducer can reduce the speed and increase the torque of their high-speed rotating power while maintaining high-precision transmission. This adaptability enables the Disc Output Planetary Gear Reducer to be widely used in multiple fields such as multi-station turntables, visual alignment systems, and precision assembly equipment.
In multi-station turntables, the Disc Output Planetary Gear Reducer , combined with servo motors, can realize high-speed and high-precision intermittent or continuous rotary motion of the turntable. Different stations can accurately reach designated positions during the rotation of the turntable to complete corresponding processing or assembly tasks, greatly improving production efficiency. For example, in the multi-station processing of auto parts, the Disc Output Planetary Gear Reducer can ensure the positional accuracy of each station during the high-speed rotation of the turntable, allowing each part to be processed in the correct position and improving product quality and consistency.
In visual alignment systems, the Disc Output Planetary Gear Reducer provides precise power support for the rotation and positioning of cameras, enabling cameras to quickly and accurately capture image information of target objects and provide reliable data for subsequent image processing and analysis. In precision assembly equipment, the combination of the Disc Output Planetary Gear Reducer and servo motors can realize precise grasping, handling, and assembly of components, ensuring the accuracy and stability of the assembly process. Whether it is tiny electronic components or large mechanical parts, the Disc Output Planetary Gear Reducer can meet the needs of different assembly scenarios with its high-precision and high-stability performance.
As a model of Disc Output Planetary Gear Reducer s, the ZCD Disc-Type Helical Precision Planetary Gear Reducer has demonstrated strong competitiveness and broad application prospects in the field of industrial automation with its unique disc output design, stable and low-noise helical gear transmission, high-precision guarantee from precise processes, and wide adaptability. It provides an efficient, stable, and precise transmission solution for high dynamic response rotating stations in industrial production, helping industrial production move towards a higher level.
Would you like me to create a comparison table between this reducer and traditional planetary reducers to highlight its unique advantages?

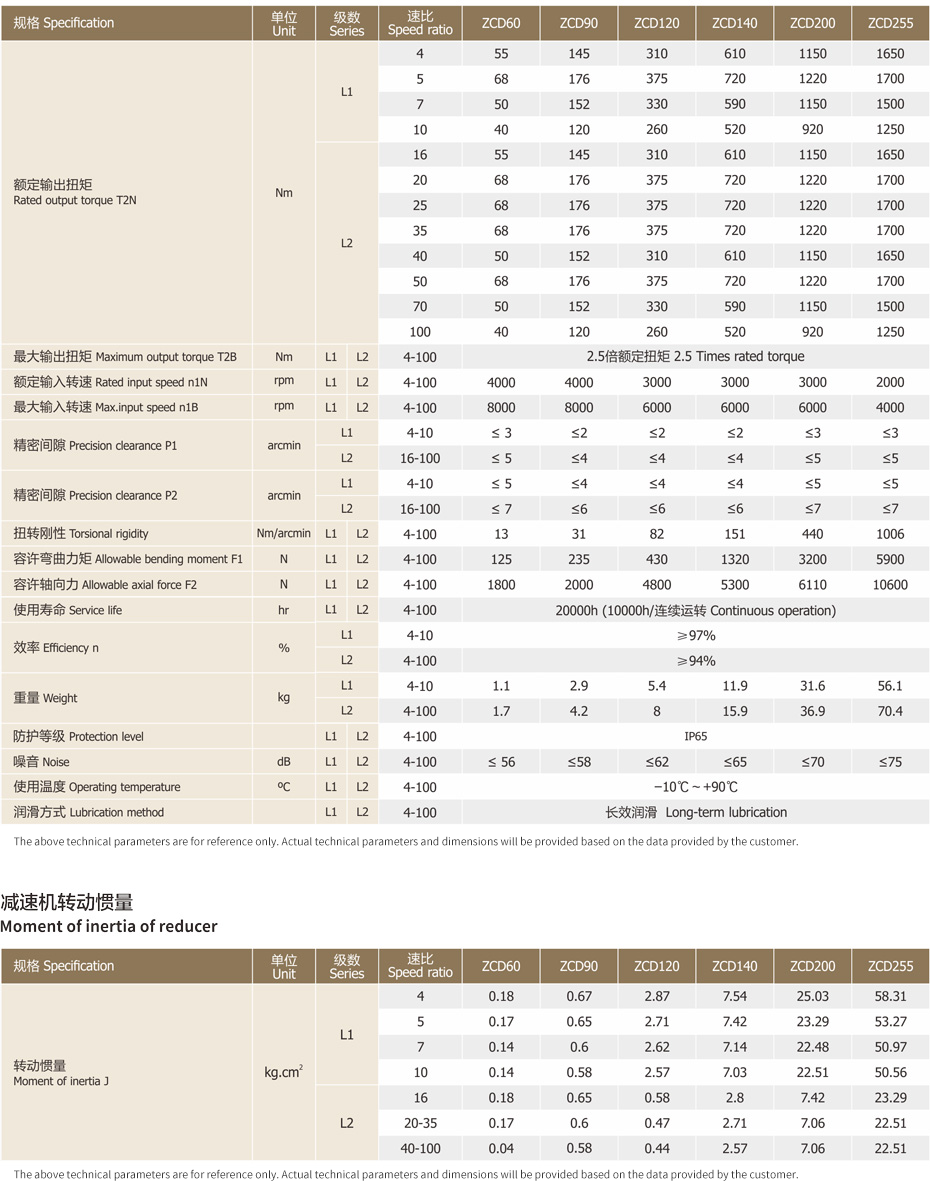

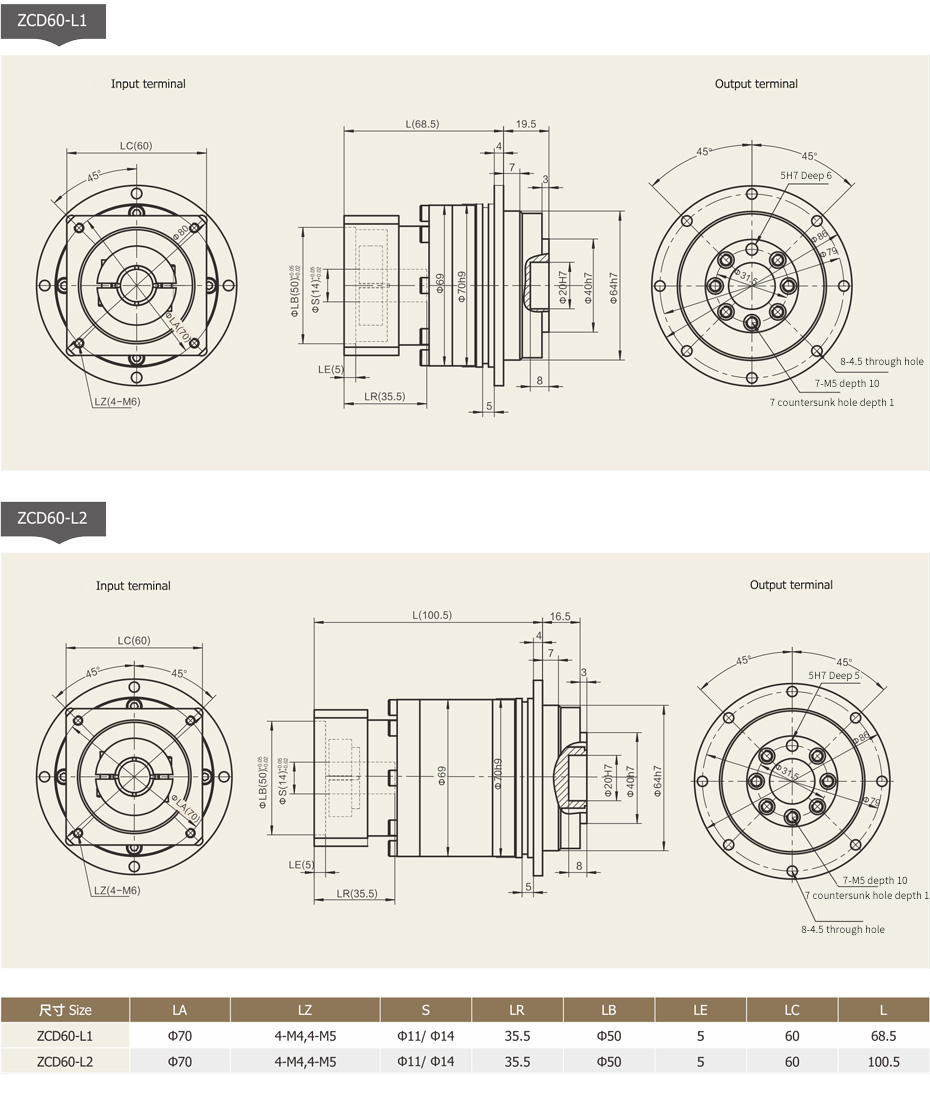

Product Parameter
