Amid the rapid development of industrial automation, nearly stringent requirements have been imposed on the precision, efficiency, and stability of transmission equipment. The ZCD Disc-Type Helical Precision Planetary Gear Reducer, as an innovative and high-performance product, stands out among numerous reducers with its unique advantages. Especially as a typical representative of High Precision Disc-Type Planetary Gear Reducer s, it brings a brand-new solution to high dynamic response rotating stations in industrial production.
One of the most prominent highlights of the ZCD Disc-Type Helical Precision Planetary Gear Reducer is its unique disc-surface output design, which makes it a leader in the field of High Precision Disc-Type Planetary Gear Reducer s. In industrial production, many working conditions require high-speed rotating components to meet specific processing or operational needs. The disc-surface output method of this reducer can be directly connected to these high-speed rotating working conditions without additional conversion devices, greatly simplifying the structure of the transmission system. For example, in the rotary drive of multi-station turntables, the disc-surface output of the High Precision Disc-Type Planetary Gear Reducer can directly drive the turntable to rotate, reducing energy loss and error accumulation that may be caused by intermediate transmission links, and making the rotation of the turntable more stable and efficient.
This disc-type structural design also has the significant advantage of being easy to directly connect with workbenches or fixtures. In precision assembly equipment, the installation accuracy of workbenches and fixtures is crucial for assembly quality. The High Precision Disc-Type Planetary Gear Reducer can be directly connected to workbenches or fixtures, reducing errors caused by improper installation of intermediate transmission components and effectively improving the rigidity of the system. After the rigidity of the system is enhanced, it is not easy to deform when subjected to large external forces, thereby ensuring transmission precision. For instance, in the precision assembly process of auto parts, the direct connection between the High Precision Disc-Type Planetary Gear Reducer and the workbench can ensure the positional accuracy of various parts during the assembly process, improve assembly quality, and reduce the defective rate.
As a High Precision Disc-Type Planetary Gear Reducer , ZCD adopts a helical planetary transmission scheme, which is the key to its efficient and stable operation. In traditional spur planetary transmission, gears make instantaneous contact and separation during meshing, which generates large impact and noise, and also affects transmission efficiency. In contrast, helical planetary transmission is different: the tooth surfaces of helical gears gradually enter and exit meshing. This gradual meshing method makes the gears subject to more uniform forces during transmission and ensures smoother meshing. In visual alignment systems, extremely high requirements are placed on the stability and precision of equipment. The helical gear transmission of the High Precision Disc-Type Planetary Gear Reducer can effectively reduce vibration caused by gear meshing impact, enabling the visual alignment system to more accurately capture the position information of target objects and improve alignment precision and efficiency.
The helical planetary transmission scheme also brings an improvement in transmission efficiency. Professional tests have shown that the transmission efficiency of this High Precision Disc-Type Planetary Gear Reducer is ≥96%, which means that during power transmission, only a small amount of energy is lost, and most of the energy can be effectively transmitted to the output end. In industrial equipment that needs to operate continuously for a long time, high transmission efficiency can significantly reduce energy consumption and save a lot of operating costs for enterprises. For example, in some large automated production lines where multiple High Precision Disc-Type Planetary Gear Reducer s operate simultaneously, the energy-saving effect brought by their efficient transmission is very considerable.
The outstanding performance of the High Precision Disc-Type Planetary Gear Reducer is inseparable from precise manufacturing processes. Among them, precision ground gears combined with preload adjustment technology are the keys to ensuring stable repeat positioning accuracy and backlash control. During the gear manufacturing process, the precision grinding process can finely process the tooth surfaces of the gears, removing tiny flaws and burrs on the surface to make the tooth surfaces smoother and flatter. Smooth tooth surfaces can reduce friction during gear meshing, reduce wear, and thereby improve the service life of the gears.
Preload adjustment technology is used to precisely control the meshing clearance of the gears. By adjusting the preload between the gears, the backlash can be controlled within an extremely small range of ≤4 arcmin. Backlash is one of the important indicators to measure the precision of the reducer. A smaller backlash means that when switching between forward and reverse rotation, the positional deviation of the output end is smaller, and the repeat positioning accuracy is higher. In semiconductor manufacturing equipment, the processing precision requirements for components have reached the micron level. The low backlash characteristic of the High Precision Disc-Type Planetary Gear Reducer can ensure that the equipment achieves high-precision intermittent or continuous rotary motion during operation, meeting the high-precision requirements of semiconductor manufacturing.
The High Precision Disc-Type Planetary Gear Reducer has a wide adaptability and can perfectly match mainstream servo motors. Servo motors are characterized by high precision and high response speed, and the High Precision Disc-Type Planetary Gear Reducer can reduce the speed and increase the torque of their high-speed rotating power while maintaining high-precision transmission. This adaptability enables the High Precision Disc-Type Planetary Gear Reducer to be widely used in multiple fields such as multi-station turntables, visual alignment systems, and precision assembly equipment.
In multi-station turntables, the High Precision Disc-Type Planetary Gear Reducer , combined with servo motors, can realize high-speed and high-precision intermittent or continuous rotary motion of the turntable. Different stations can accurately reach designated positions during the rotation of the turntable to complete corresponding processing or assembly tasks, greatly improving production efficiency. In visual alignment systems, the High Precision Disc-Type Planetary Gear Reducer provides precise power support for the rotation and positioning of cameras, enabling cameras to quickly and accurately capture image information of target objects and provide reliable data for subsequent image processing and analysis. In precision assembly equipment, the combination of the High Precision Disc-Type Planetary Gear Reducer and servo motors can realize precise grasping, handling, and assembly of components, ensuring the accuracy and stability of the assembly process.
As an outstanding representative of High Precision Disc-Type Planetary Gear Reducer s, the ZCD Disc-Type Helical Precision Planetary Gear Reducer has demonstrated strong strength and huge potential in the field of industrial automation with its unique disc-type structure, helical gear transmission scheme, precision manufacturing processes, and wide adaptability. It provides an efficient, stable, and precise transmission solution for high dynamic response rotating stations in industrial production, helping industrial production move towards higher precision and higher efficiency.
One of the most prominent highlights of the ZCD Disc-Type Helical Precision Planetary Gear Reducer is its unique disc-surface output design, which makes it a leader in the field of High Precision Disc-Type Planetary Gear Reducer s. In industrial production, many working conditions require high-speed rotating components to meet specific processing or operational needs. The disc-surface output method of this reducer can be directly connected to these high-speed rotating working conditions without additional conversion devices, greatly simplifying the structure of the transmission system. For example, in the rotary drive of multi-station turntables, the disc-surface output of the High Precision Disc-Type Planetary Gear Reducer can directly drive the turntable to rotate, reducing energy loss and error accumulation that may be caused by intermediate transmission links, and making the rotation of the turntable more stable and efficient.
As a High Precision Disc-Type Planetary Gear Reducer , ZCD adopts a helical planetary transmission scheme, which is the key to its efficient and stable operation. In traditional spur planetary transmission, gears make instantaneous contact and separation during meshing, which generates large impact and noise, and also affects transmission efficiency. In contrast, helical planetary transmission is different: the tooth surfaces of helical gears gradually enter and exit meshing. This gradual meshing method makes the gears subject to more uniform forces during transmission and ensures smoother meshing. In visual alignment systems, extremely high requirements are placed on the stability and precision of equipment. The helical gear transmission of the High Precision Disc-Type Planetary Gear Reducer can effectively reduce vibration caused by gear meshing impact, enabling the visual alignment system to more accurately capture the position information of target objects and improve alignment precision and efficiency.
The helical planetary transmission scheme also brings an improvement in transmission efficiency. Professional tests have shown that the transmission efficiency of this High Precision Disc-Type Planetary Gear Reducer is ≥96%, which means that during power transmission, only a small amount of energy is lost, and most of the energy can be effectively transmitted to the output end. In industrial equipment that needs to operate continuously for a long time, high transmission efficiency can significantly reduce energy consumption and save a lot of operating costs for enterprises. For example, in some large automated production lines where multiple High Precision Disc-Type Planetary Gear Reducer s operate simultaneously, the energy-saving effect brought by their efficient transmission is very considerable.
The outstanding performance of the High Precision Disc-Type Planetary Gear Reducer is inseparable from precise manufacturing processes. Among them, precision ground gears combined with preload adjustment technology are the keys to ensuring stable repeat positioning accuracy and backlash control. During the gear manufacturing process, the precision grinding process can finely process the tooth surfaces of the gears, removing tiny flaws and burrs on the surface to make the tooth surfaces smoother and flatter. Smooth tooth surfaces can reduce friction during gear meshing, reduce wear, and thereby improve the service life of the gears.
Preload adjustment technology is used to precisely control the meshing clearance of the gears. By adjusting the preload between the gears, the backlash can be controlled within an extremely small range of ≤4 arcmin. Backlash is one of the important indicators to measure the precision of the reducer. A smaller backlash means that when switching between forward and reverse rotation, the positional deviation of the output end is smaller, and the repeat positioning accuracy is higher. In semiconductor manufacturing equipment, the processing precision requirements for components have reached the micron level. The low backlash characteristic of the High Precision Disc-Type Planetary Gear Reducer can ensure that the equipment achieves high-precision intermittent or continuous rotary motion during operation, meeting the high-precision requirements of semiconductor manufacturing.
The High Precision Disc-Type Planetary Gear Reducer has a wide adaptability and can perfectly match mainstream servo motors. Servo motors are characterized by high precision and high response speed, and the High Precision Disc-Type Planetary Gear Reducer can reduce the speed and increase the torque of their high-speed rotating power while maintaining high-precision transmission. This adaptability enables the High Precision Disc-Type Planetary Gear Reducer to be widely used in multiple fields such as multi-station turntables, visual alignment systems, and precision assembly equipment.
In multi-station turntables, the High Precision Disc-Type Planetary Gear Reducer , combined with servo motors, can realize high-speed and high-precision intermittent or continuous rotary motion of the turntable. Different stations can accurately reach designated positions during the rotation of the turntable to complete corresponding processing or assembly tasks, greatly improving production efficiency. In visual alignment systems, the High Precision Disc-Type Planetary Gear Reducer provides precise power support for the rotation and positioning of cameras, enabling cameras to quickly and accurately capture image information of target objects and provide reliable data for subsequent image processing and analysis. In precision assembly equipment, the combination of the High Precision Disc-Type Planetary Gear Reducer and servo motors can realize precise grasping, handling, and assembly of components, ensuring the accuracy and stability of the assembly process.
As an outstanding representative of High Precision Disc-Type Planetary Gear Reducer s, the ZCD Disc-Type Helical Precision Planetary Gear Reducer has demonstrated strong strength and huge potential in the field of industrial automation with its unique disc-type structure, helical gear transmission scheme, precision manufacturing processes, and wide adaptability. It provides an efficient, stable, and precise transmission solution for high dynamic response rotating stations in industrial production, helping industrial production move towards higher precision and higher efficiency.

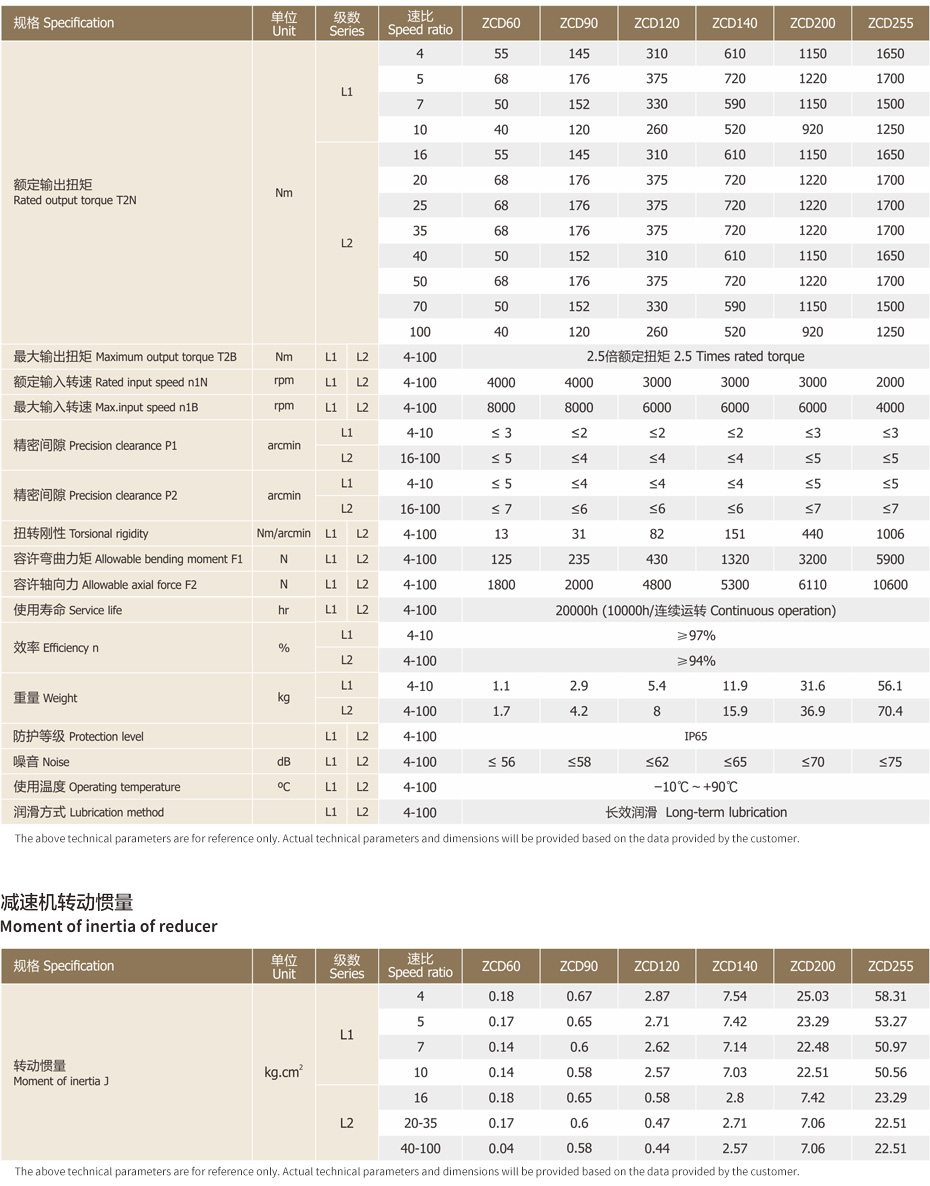

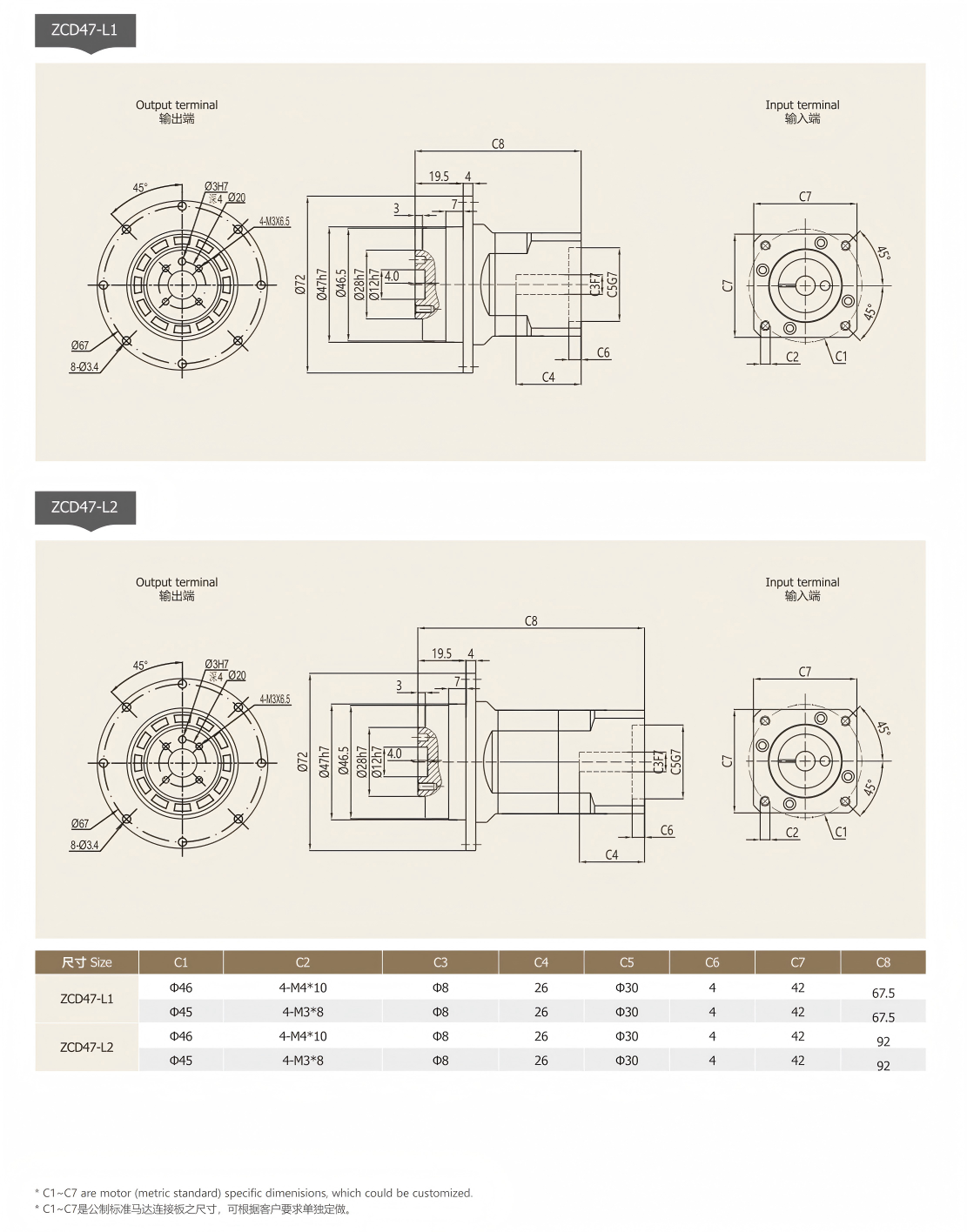

Product Parameter
